> Audison>bit & Prima>Prima Amplifikatörler>Audison AF M6D

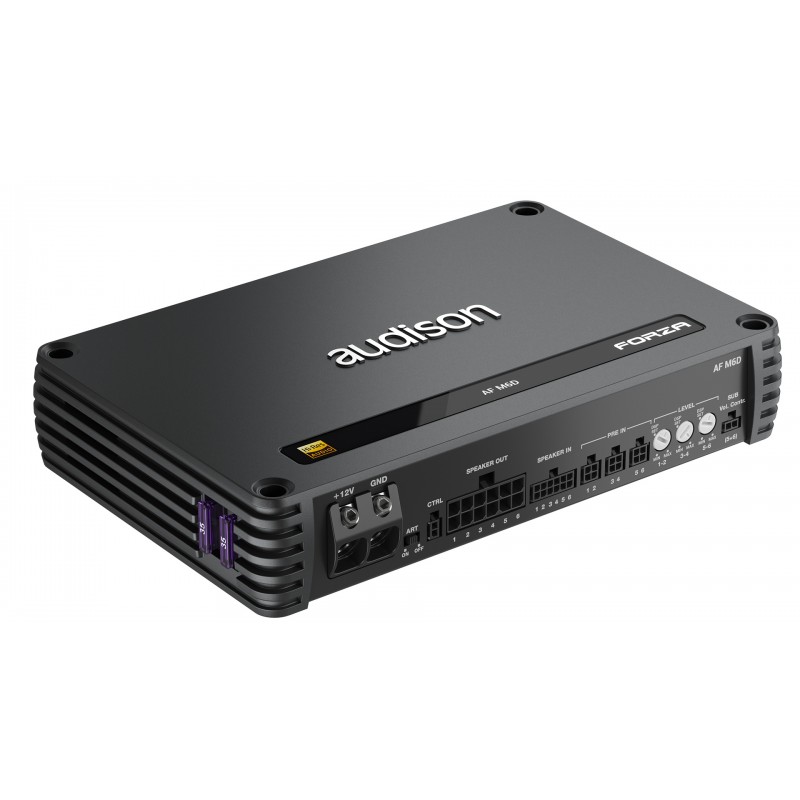

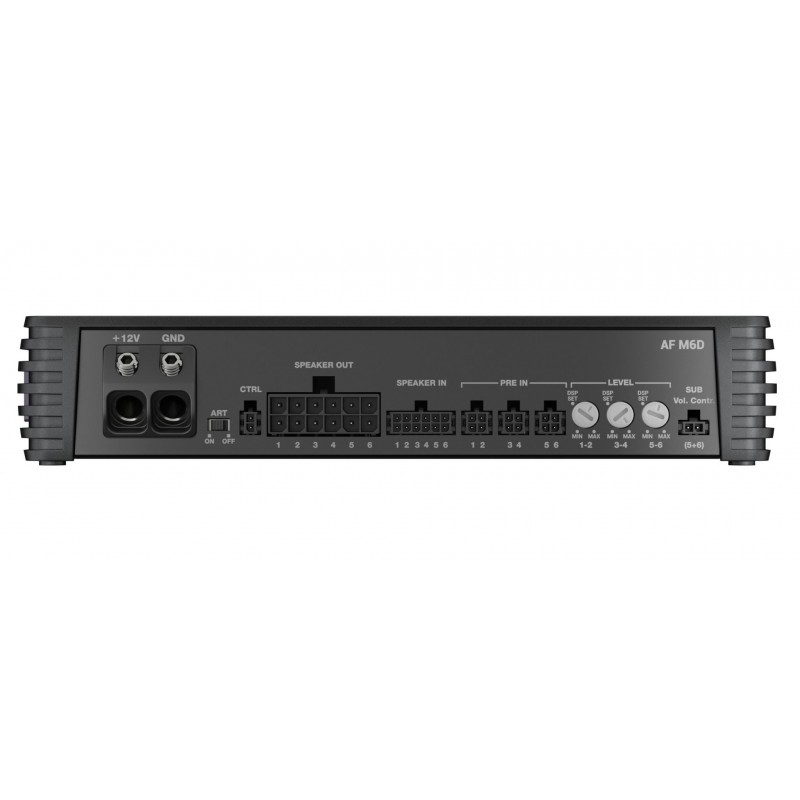

Audison AF M6D Daha Büyük Görüntüle

Audison AF M6D

Yeni

AF M6D Amplifier

6 x 220 W @ 2 ohm  D-class Fully Bridgeable

Daha Fazla Detaylar

28,333.33 TL

İstek listesine ekle

Daha Fazla Bilgi

AF M6DAmplifier | 6 x 220 W @ 2 ohm | D-class Fully Bridgeable

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

AMPLIFIER TECH DATA

Channels 6
Class D-Class
Efficiency 81 %
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Power supply voltage / fuse 11 ÷ 15 VDC
Operating power supply voltage 6.5 ÷ 17.5 VDC
Idling current 1 A
Idling current when off 0.009 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 60 A
Remote OUT 6.5 ÷15 VDC (150 mA)
Remote IN 4 ÷15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC

AMPLIFIER STAGE

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.04%
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz
S/N ratio A (A weighted @ 1 V): 103 dBA
Damping factor A (100 Hz, 4Ω, 2 VRMS): 160
Input sensitivity Pre-In 0.6 ÷ 6 VRMS
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS
Total Power RMS 1320 W
Minimum load impedance 6 Ch 2Ω
3 Ch - (Bridge) 4Ω
Output Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD 6 Ch @ 4Ω: 135 W x 6

6 Ch @ 2Ω: 220 W x 6

3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
Adjustable Crossover No

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V 130 W x 6
SN ratio (ref. 1W output) 80

INPUTS

Input Type Pre-In / Speaker-In
Remote Sub Volume (-12 ÷ +12) dB

OTHER

Fuse 2 x 35A
Weight 1.95 kg

DIMENSIONS

Dimension A 240 mm
Dimension B 156 mm
Dimension C 47 mm
