Audison Compact SR 1.500

Daha Büyük Görüntüle

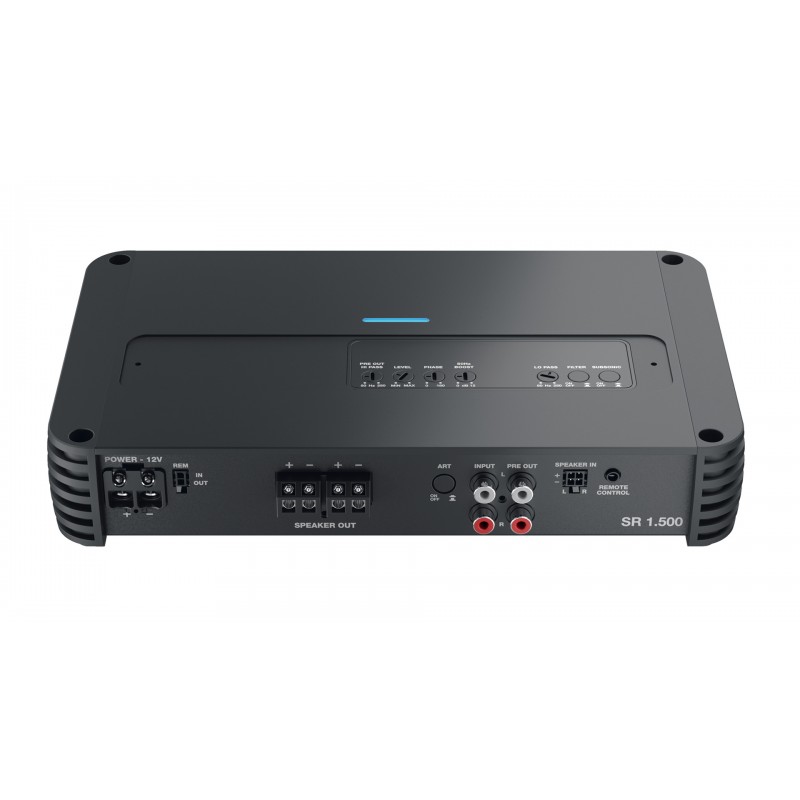

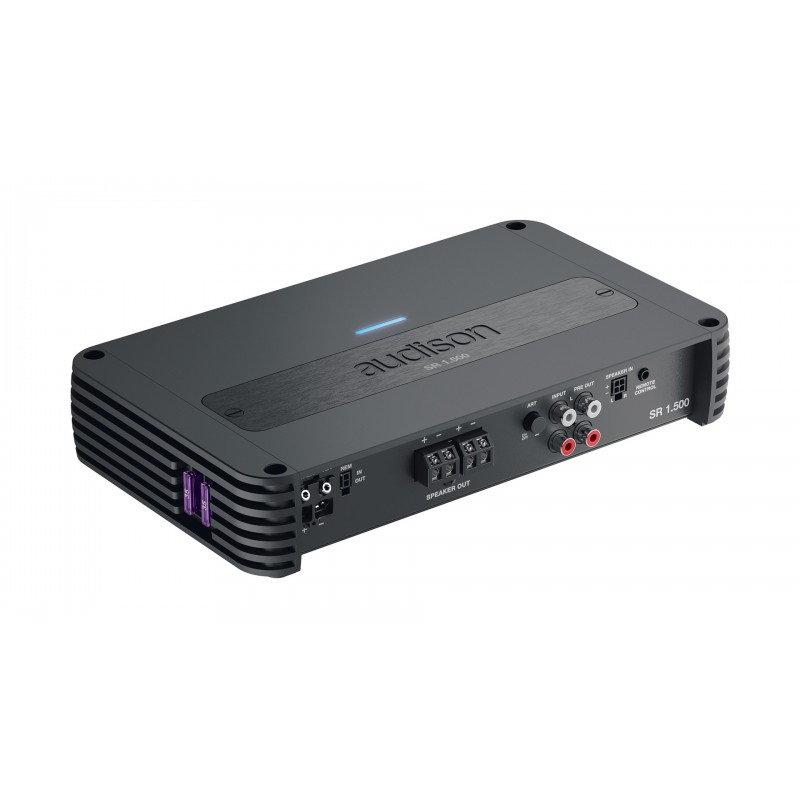

Audison Compact SR 1.500

Durum Yeni

SR 1.500

ÇIKIŞ GÜCÜ (RMS) @ 14.4 VDC,% 1 THD:	500 W x 1 Kanal
SN oranı (ref. 1 W çıkış)	75 dBA'ya kadar

ÇIKIŞ GÜCÜ (RMS) @ 14.4 VDC,% 1 THD:	GÜÇ W RMS
1	500 x 1 (4 Ω)
1	800 x 1 (2 Ω)
1	1000 x 1 (1 Ω)

Daha Fazla Detaylar

Arkadaşına Gönder

Arkadaşına Gönder

Audison Compact SR 1.500

SR 1.500

ÇIKIŞ GÜCÜ (RMS) @ 14.4 VDC,% 1 THD:

500 W x 1 Kanal

SN oranı (ref. 1 W çıkış)

75 dBA'ya kadar

ÇIKIŞ GÜCÜ (RMS) @ 14.4 VDC,% 1 THD:

GÜÇ W RMS

1

500 x 1 (4 Ω)

1

800 x 1 (2 Ω)

1

1000 x 1 (1 Ω)

Alıcı :

Arkadaşınızın Adı ^* :

Arkadaşınızın eposta adresleri ^* :

^* Zorunlu alan

Veya İptal
Yazdır

25,555.56 TL

-0%

Miktarı

İstek listesine ekle

Daha Fazla Bilgi

Amplifier Tech Data

Channels	1
Class	D-Class
Hi Level Input	Yes
Low Level Input	Yes
Digital Input	No
Power supply voltage / fuse	11 ÷ 15 VDC / 2 x 35A
Operating power supply voltage	6.5 ÷17 VDC
Idling current	0.8 A
Idling current when off	0.02 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power	40 A
Remote OUT	6.5 ÷ 15 VDC (150 mA)
Remote IN	6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)	1.5 ÷ 7 VDC

Amplifier Stage

Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power	0.1 %
Bandwidth A	(-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz
S/N ratio A	(A weighted @ 1 V): 100 dBA
Damping factor A	> 300
Input sensitivity Pre-In	0.2 ÷ 5 VRMS
Input sensitivity Speaker-In	0.8 ÷ 20 VRMS
Total Power RMS	1000 W
Minimum load impedance	1Ω
Output Power (RMS) @14.4 VDC, 1% THD	1Ch 500 W x 1 (4Ω) 1Ch 800 W x 1 (2Ω) 1Ch 1000 W x 1 (1Ω)
Adjustable Crossover	No

CEA Specifications

Output power @ 4Ω, 1% THD+N, 14.4 V	500 W x 1 Ch
SN ratio (ref. 1W output)	75 dBA

Inputs

Input Type	Pre-In / Speaker-In
Filters Outputs	PRE OUT Hi-Pass filtered 50 ÷ 250Hz @ 12 dB/Oct.
Filter Pass A	Filters: Full LP 50 ÷ 250Hz @ 24 dB/Oct.
Inputs/Outputs Phase	(0 ÷ 180) deg
Inputs/Outputs Bass Boost	(0 ÷12) dB
Inputs/Outputs Subsonic	25 Hz @ 24 dB/Oct.
Remote Sub Volume	(-20 ÷ 6) dB

Other

Weight

2.23 kg

Dimensions


Dimension A	264 mm
Dimension B	234 mm
Dimension C	155 mm
Dimension D	135 mm
Dimension E	47.5 mm
