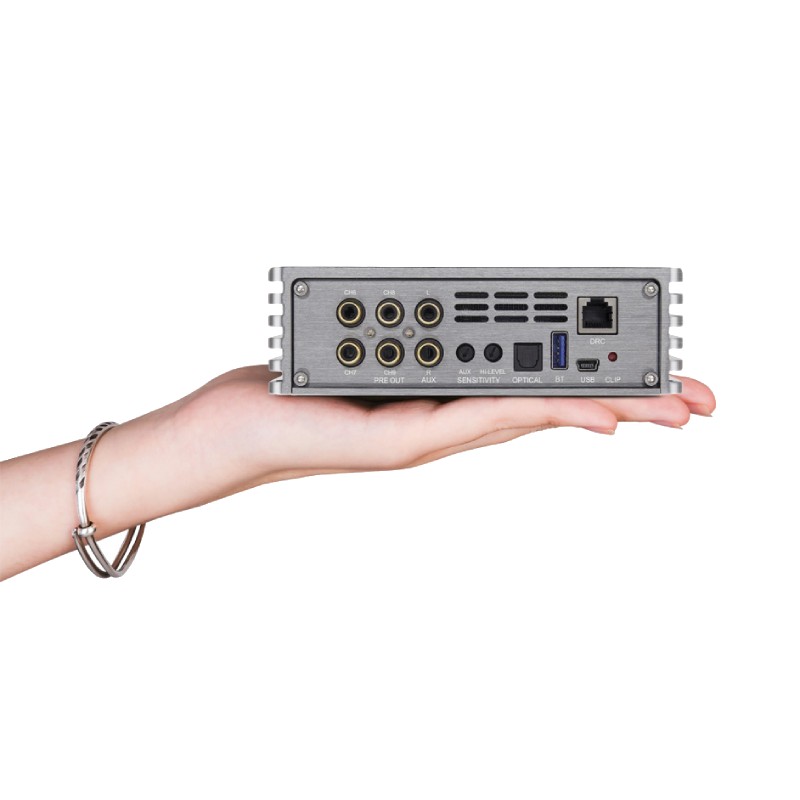

Barely larger than a mobile phone, the M5 fits into the smallest of spaces. Although there are many small Class-D amplifiers, none of them offer an output of 500 watts RMS and an integrated 9-channel DSP in this size. This all-rounder can shine as a high-quality component in a sophisticated high-end system or effortlessly fill a vehicle with sound. It owes its impressive versatility to the 9-channel DSP, which seamlessly integrates additional components with four additional, externally usable channels. No matter what sound visions you want to realize, the M5 is a future-proof investment that adapts perfectly even if you expand later without having to replace it. Four powerful 50-watt RMS channels are available for passive front and rear systems - and even for the subwoofer, with 300 watts at 2 ohms in active mode, there is still plenty of power left over.

As is usual with Musway, only the highest quality components are used in the M5: The Analog Devices DSP chip ADAU1452 is a dream, flanked by Burr-Brown converters. Sound adjustments can be made in a flash using an app or PC software. Whether it's frequency or runtime correction, Q factor, runtime adjustment, phase rotation or complex crossover configurations, all settings are available to you to professionally meet audiophile requirements.

The EVO version of the M5 has a 20 cm cable harness with open ends, while the regular M5 comes with a 2.5 meter long ISO cable for easy plug+play connection to the car radio.

Features:

• High Level Input with EPS® (Error Protection System)

• Start-Stop ready, Auto Turn-On

• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 642bit, 295 MHz DSP technology, controllable via PC software or Smartphone App

• Signal-to-noise Ratio 95dB

• Frequency Response 10 Hz – 20 kHz (-3dB)

• THD 0,015% (1 kHz, 4 Ohms, 90% Power)

• Plug+Play with vehicle-specific cable sets

• Inclusive 2,50 m MX-Connect™ Cable Harness on ISO

• External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

• Quick Connect Terminal to connect MUSWAY Subwoofer Systems
