Audison AF C4D
Alıcı :
* Zorunlu alan
Veya İptal

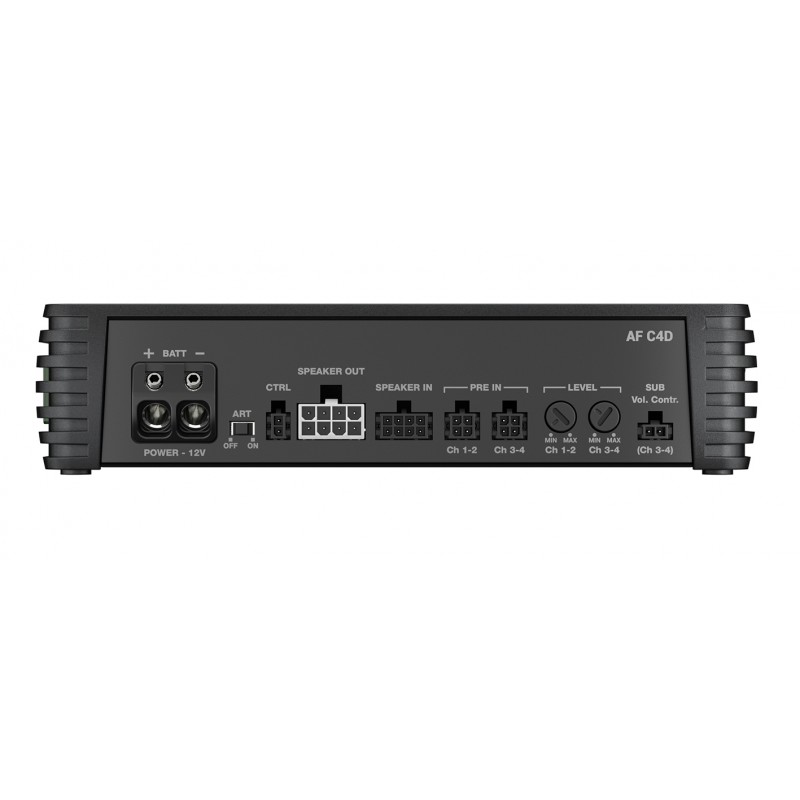

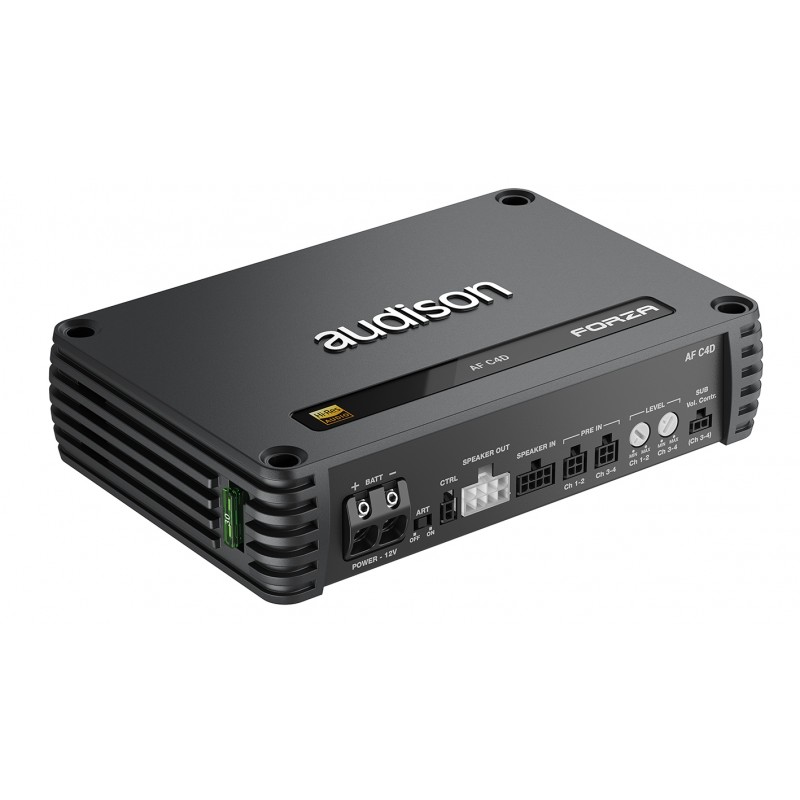

AF C4DAmplifier | 4 x 150 W @ 2 ohm | D-class Fully Bridgeable
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M4D boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 300W x 2 @4Ω*, guaranteeing flexible and powerful performance. *Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Channels | 4 |
Class | D-Class |
Efficiency | 81% |
Hi Level Input | Yes |
Low Level Input | Yes |
Digital Input | No |
Power supply voltage / fuse | 11 ÷ 15 VDC |
Operating power supply voltage | 6.5 ÷ 17.5 VDC |
Idling current | 1.04 A |
Idling current when off | 0.007 mA |
Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 29 A |
Remote OUT | 6.5 ÷15 VDC (150 mA) |
Remote IN | 4 ÷15 VDC (1 mA) |
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | 1.5 VDC |
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power | 0,03% |
Bandwidth A | (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 42kHz |
S/N ratio A | (A weighted @ 1 V): 103 dBA |
Damping factor A | (100 Hz, 4Ω, 2 VRMS): 95 |
Input sensitivity Pre-In | 0.6 ÷ 6 VRMS |
Input sensitivity Speaker-In | 2.2 ÷ 22 VRMS |
Total Power RMS | 600 W |
Minimum load impedance | 2Ω: |
Output Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD | 4Ch @ 4Ω: 90 W x 4 4Ch @ 2Ω: 150 W x 4 2Ch (bridge) @ 4Ω: 300 W x 2 |
Adjustable Crossover | No |
Output power @ 4Ω, 1% THD+N, 14.4 V | 90 W x 4 |
SN ratio (ref. 1W output) | 82 dB |
Remote Sub Volume | ±12 dB |
Fuse | 1 x 30 A |
Weight | 1.49 kg |
Dimension A | 200 mm |
Dimension B | 47 mm |
Dimension C | 134 mm |
